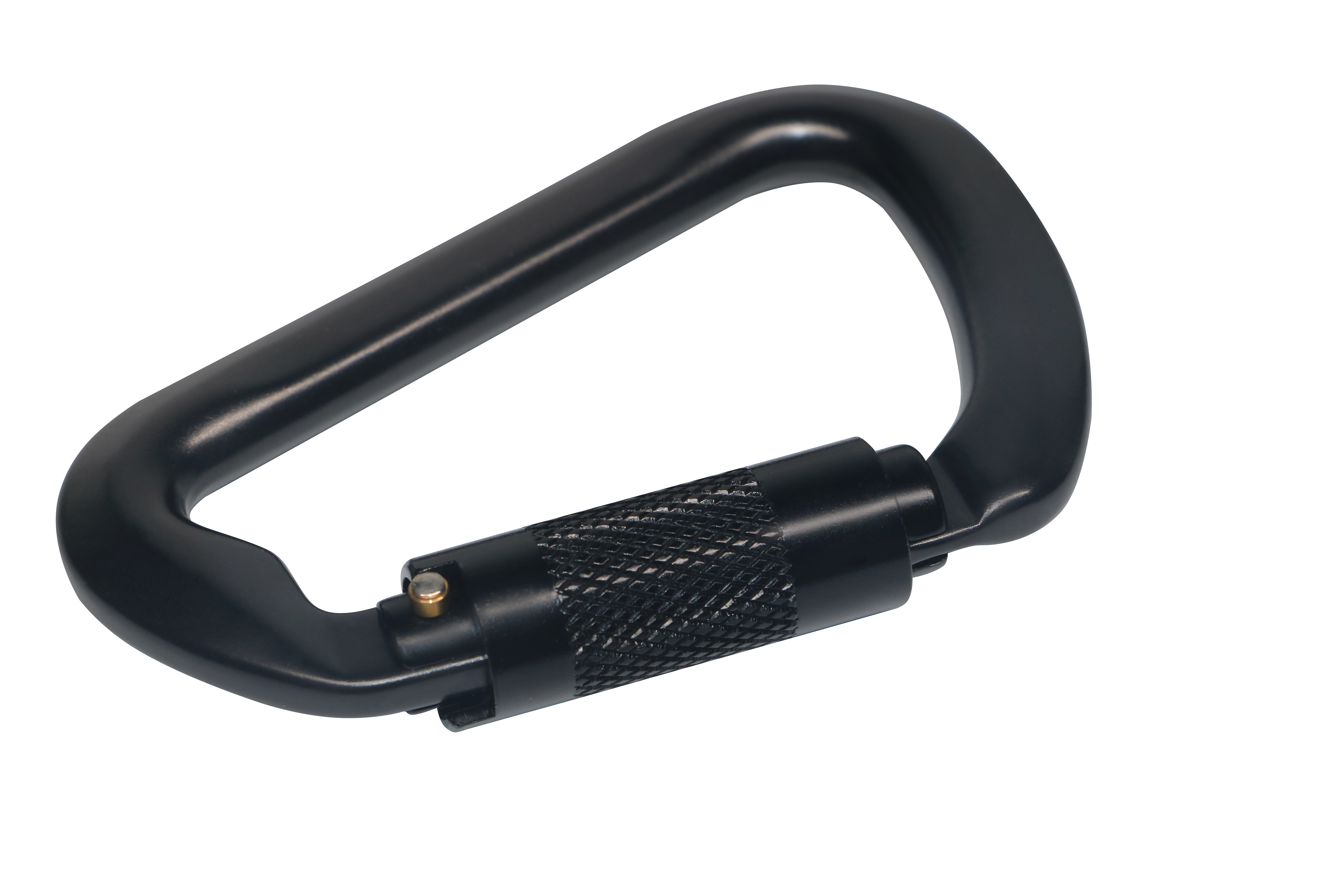

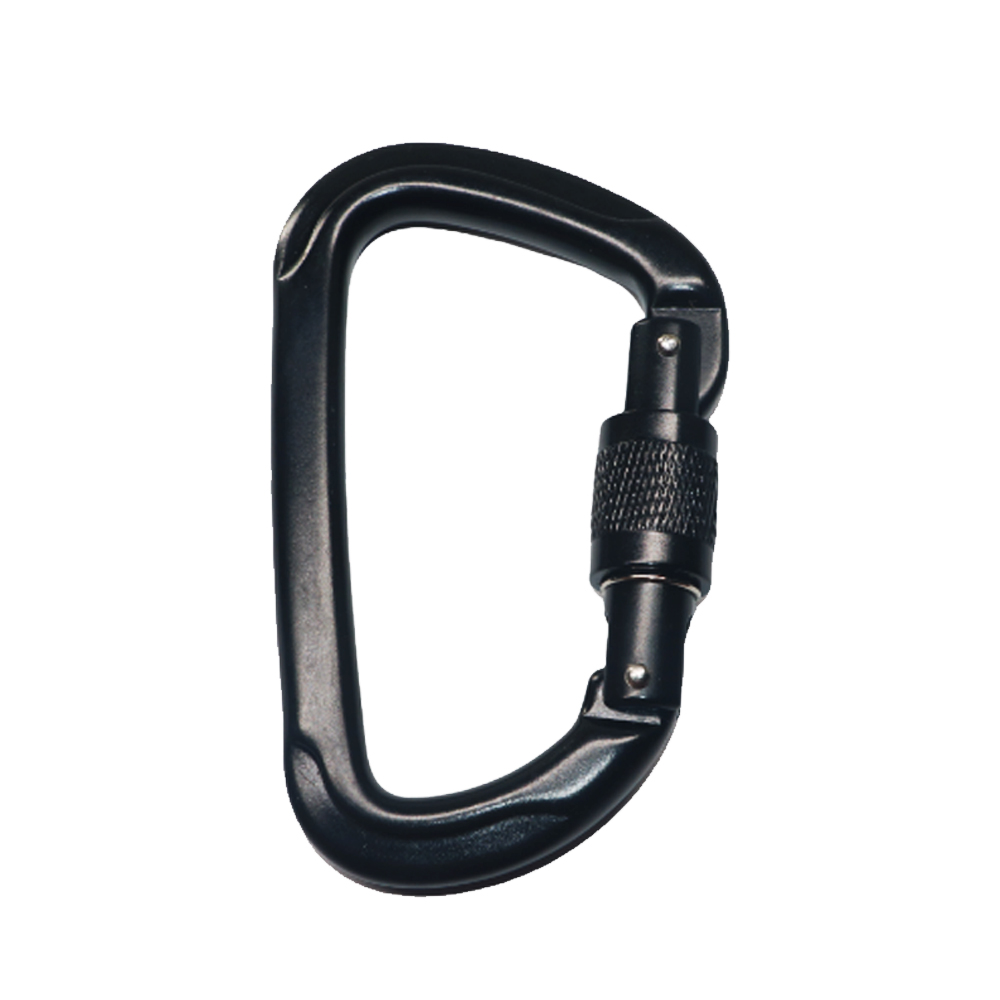

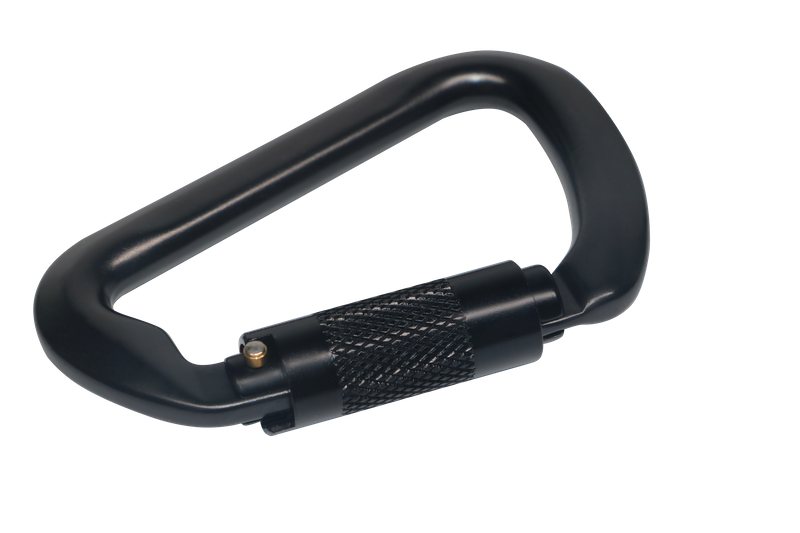

Durable Aluminum Carabiner with Keychain Hook, 30KN Load Capacity

Overview

Crafted for users who need a reliable connector for both heavy-duty tasks and daily carry, it combines aircraft-grade aluminum construction with innovative locking technology, making it equally at home on a climbing harness or attached to a set of house keys.

Features

Industrial-Grade Strength

30kN Tensile Performance: Exceeds UIAA 124 (25kN) and EN 362 (20kN) standards, with a breaking strength of 30,000N (6,740lbs)—suitable for technical rescue operations and industrial lifting when used within load guidelines.

Premium Alloy Construction: 7075-T6 aluminum (T6 temper) offers a yield strength of 505 MPa, 25% stronger than 6061 alloy, with a fracture toughness that resists cracking under repeated dynamic loads (500-cycle fatigue test at 80% load).

Dual-Functionality Design

Stainless Steel Keychain Hook: A 4mm diameter 304 stainless steel hook (5kN rating) features a spring-loaded latch (15N activation force) that securely holds keys, USB drives, or small tools, with a 360° swivel to prevent tangling.

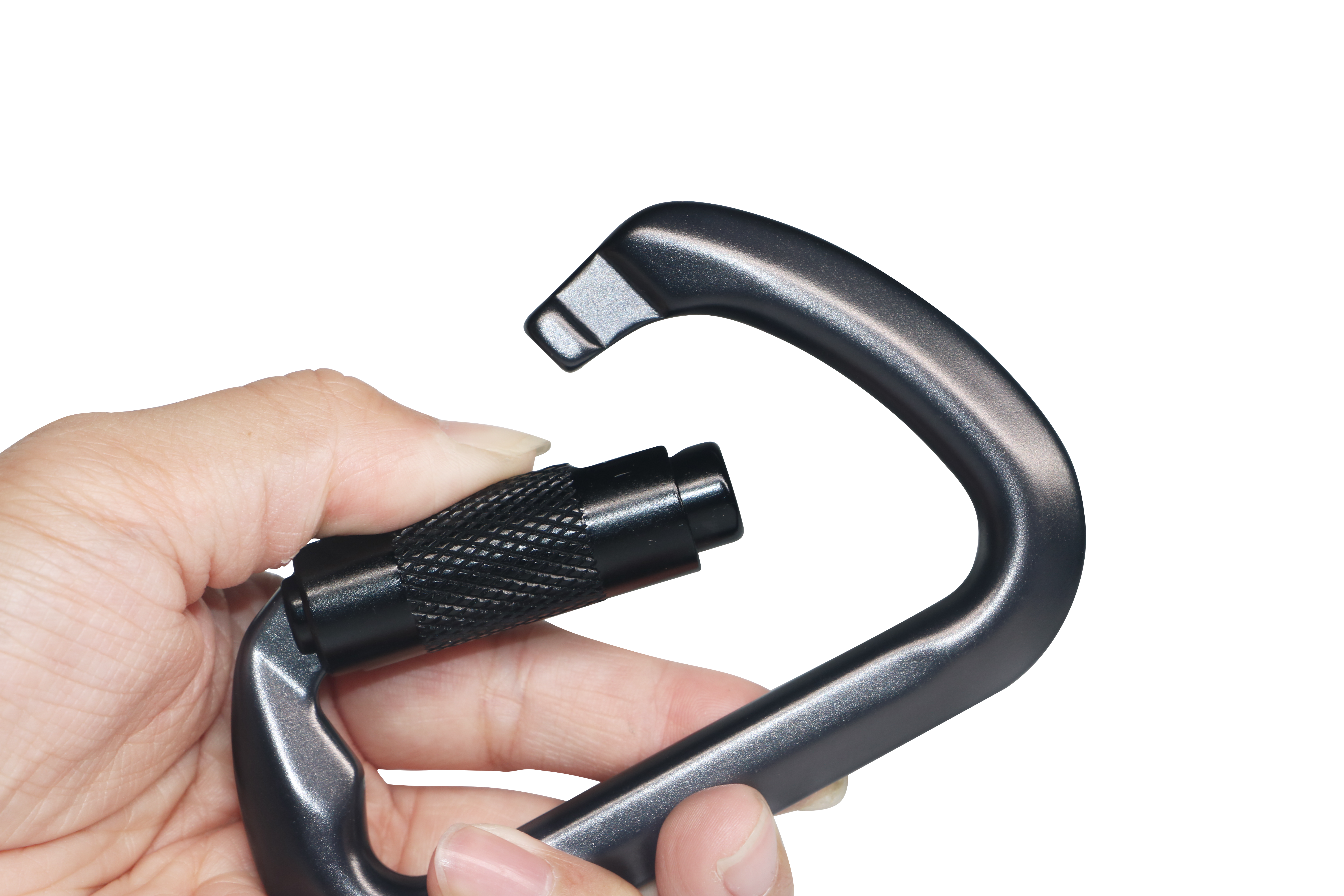

Asymmetrical Body Geometry: The 85x55mm shape places the reinforced nose (5mm thickness) at the load-bearing point, while the tapered gate (10mm opening) allows one-handed operation with 30% less force than symmetrical designs.

Advanced Locking Technology

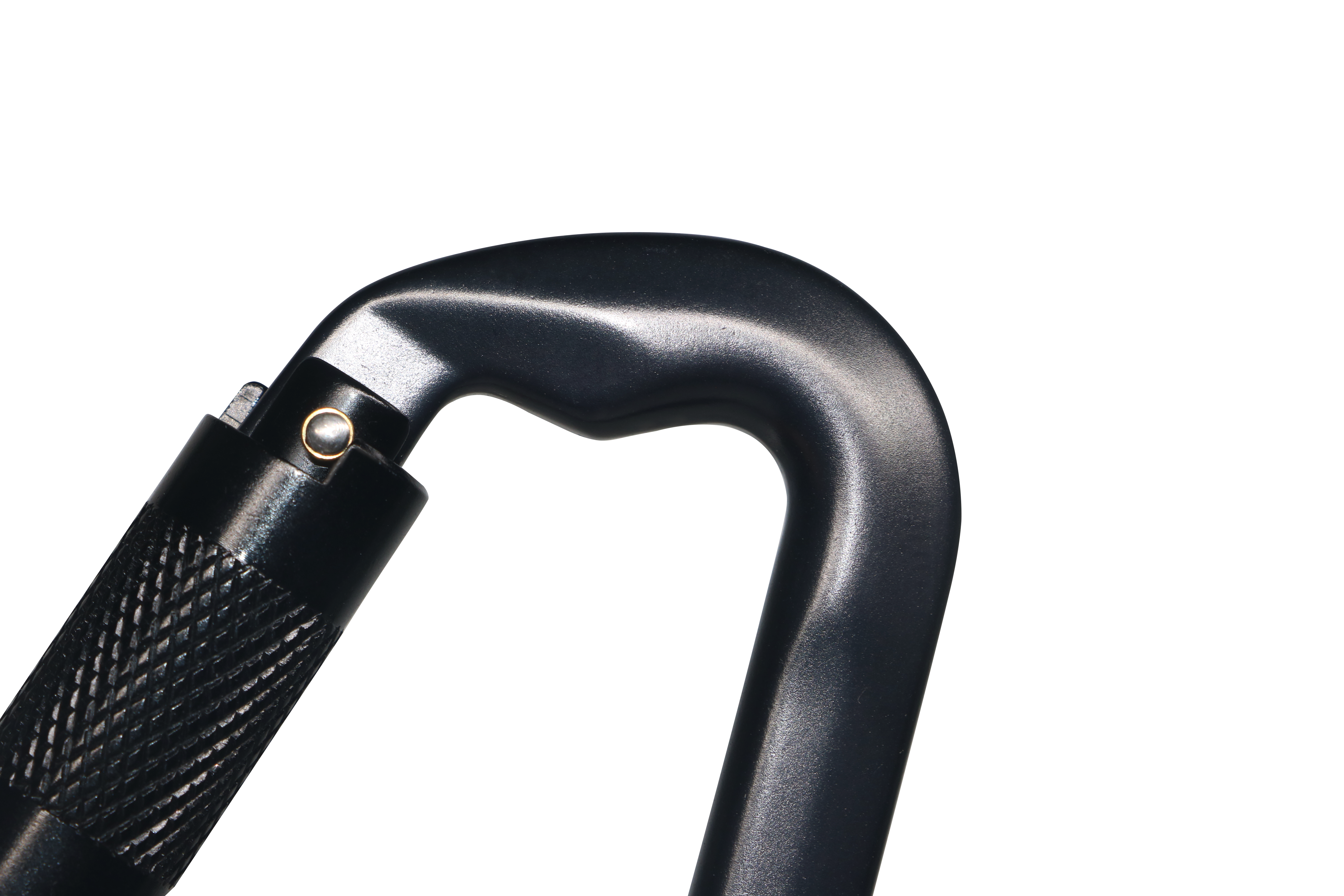

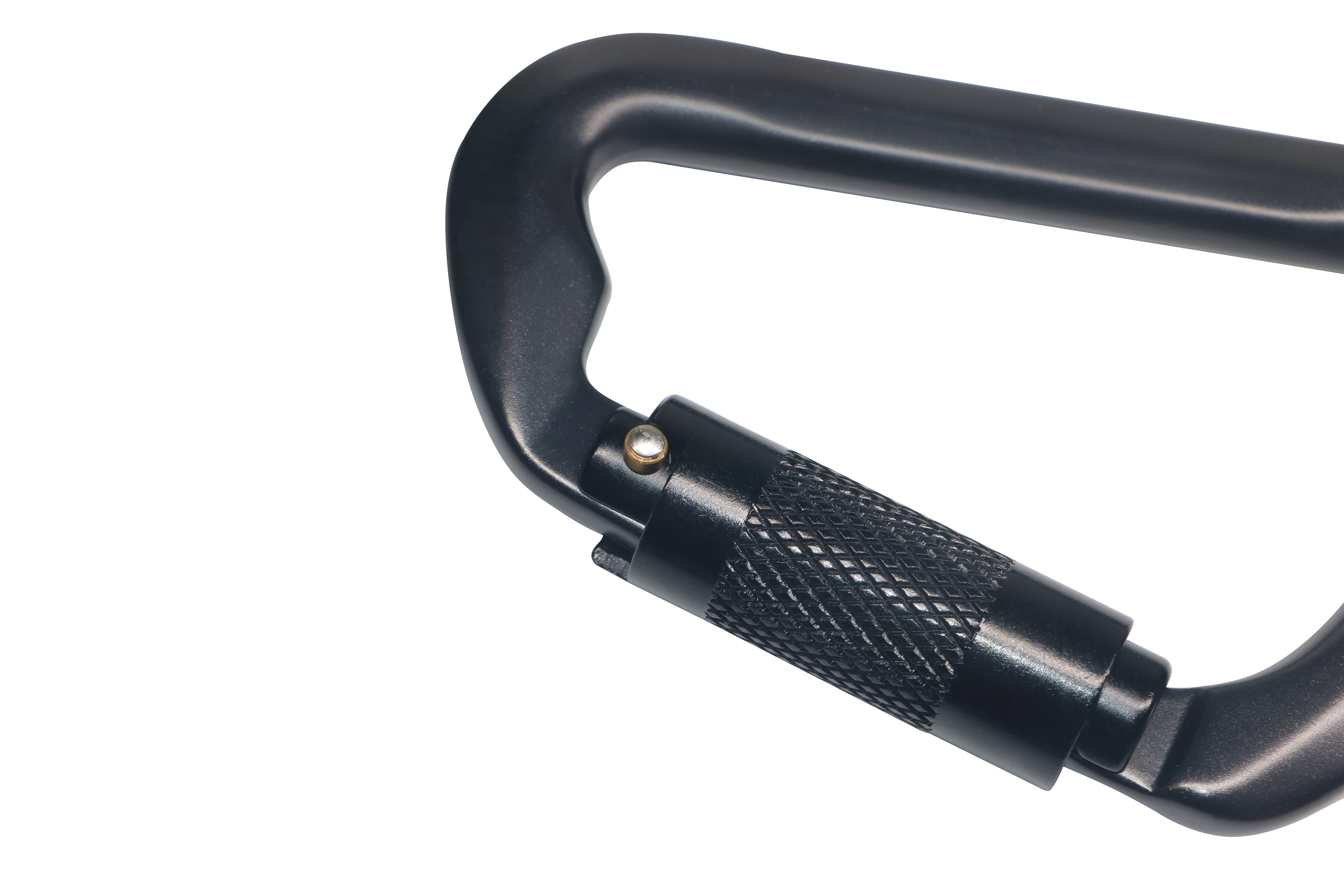

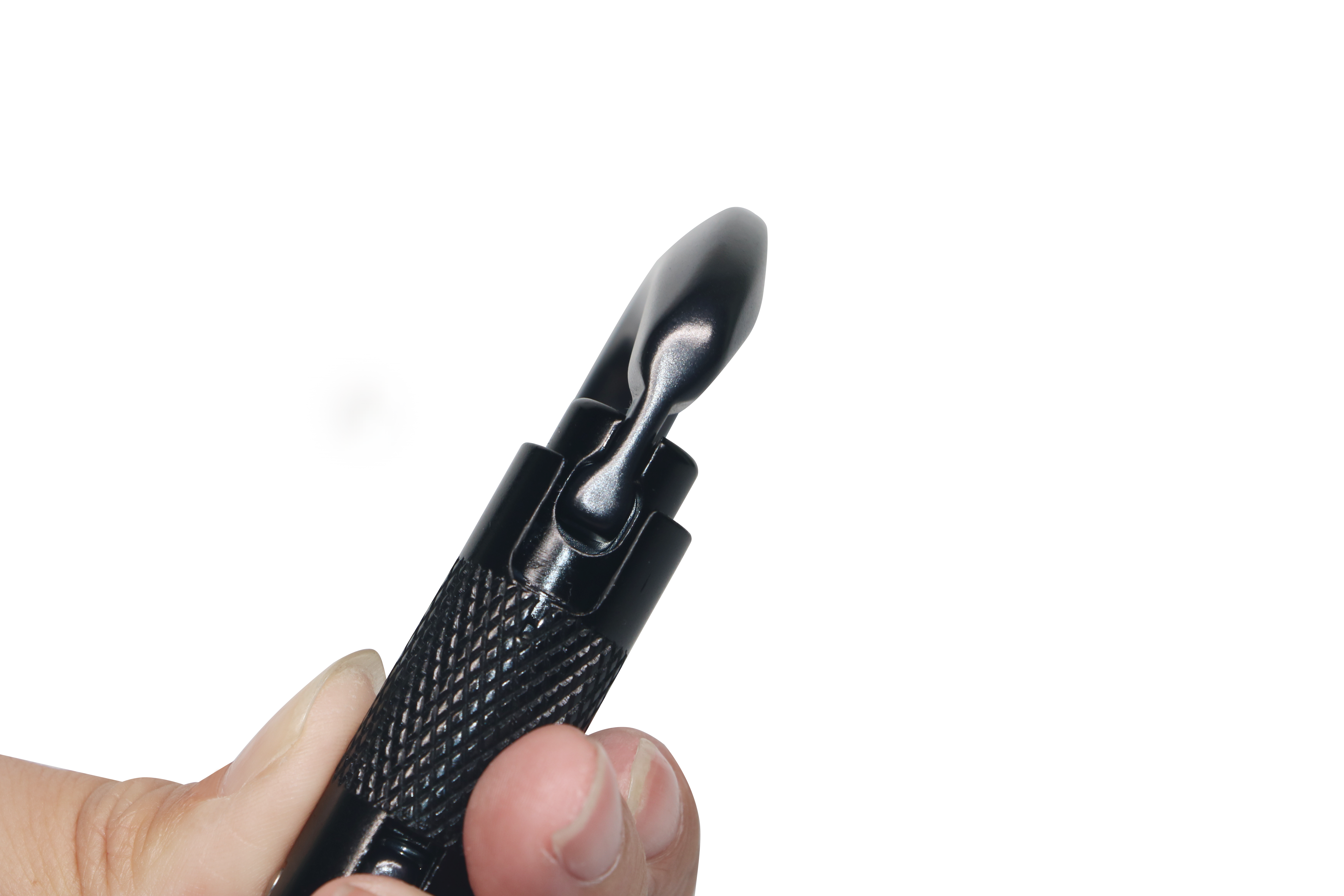

Magnetic-Assist Twist Lock: A neodymium magnet (10mT flux density) aligns the gate for easy closure, reducing accidental openings in vibration (tested at 10G, 20-2,000Hz) by 70% compared to non-magnetic carabiners. The twist-lock mechanism (2.5 turns to lock) meets IP54 dust/water ingress protection.

DLC-Coated Pivot Points: Diamond-like carbon (DLC) coating (2μm thickness) on the gate axle increases wear resistance to 10,000+ open/close cycles 5x longer than standard coatings with a coefficient of friction reduced to 0.15.

Precision Craftsmanship

Anti-Slip Texturing: The spine features micro-grooves (0.5mm depth, 2mm pitch) that increase surface friction by 40% when wet, tested with a tribometer at 5N/mm² pressure (equivalent to gloved grip strength).

Ultrasonic Cleaning Process: Each carabiner undergoes 30 minutes of ultrasonic cleaning (40kHz frequency) to remove machining oils and metal particulates, ensuring zero debris interference with locking mechanisms.

Application

Professional Rigging: Used in rope access work (ANSI Z359.12 compliant), caving expeditions, and fire rescue operations, where its 30kN rating provides a safety buffer for unpredictable loads.

Everyday Carry: Secures keys, wallet chains, and backpack accessories (e.g., water bottle holders), with the keyhook rated for daily use up to 5kg perfect for urban commuters and travelers.

Emergency Preparedness: Essential in survival kits for creating temporary shelters (paracord anchors), pulley systems, or securing emergency food supplies in disaster zones.

Why Choose Us

Dual Compliance Certification: The only carabiner to meet both climbing (UIAA 124) and fall arrest (EN 362) standards, offering unmatched versatility for users with diverse needs.

Patented Keyhook Integration: Our unique design positions the keyhook away from the load-bearing axis, ensuring zero interference with the carabiner’s structural integrity—verified by FEA stress analysis.

Military-Grade Testing Regime: Survived 1,000 hours of salt spray, -50°C impact, and 500 hours of UV exposure with no loss in performance, backed by a 3-year warranty on coating and mechanism.
